Image Annotator

Use image annotator when you need to draw bounding boxes over an image. Useful for computer vision.

image = 'https://images.pexels.com/photos/2696064/pexels-photo-2696064.jpeg?auto=compress&cs=tinysrgb&w=1260&h=750&dpr=1'
q.page['example'] = ui.form_card(box='1 1 9 10', items=[
    ui.image_annotator(
        name='annotator',
        title='Drag to annotate',
        image=image,
        image_height='700px',
        tags=[
            ui.image_annotator_tag(name='p', label='Person', color='$cyan'),
            ui.image_annotator_tag(name='f', label='Food', color='$blue'),
        ],
        items=[
            ui.image_annotator_item(shape=ui.image_annotator_rect(x1=649, y1=393, x2=383, y2=25), tag='p'),
            ui.image_annotator_item(tag='p', shape=ui.image_annotator_polygon([
                ui.image_annotator_point(x=828.2142857142857, y=135),
                ui.image_annotator_point(x=731.7857142857142, y=212.14285714285714),
                ui.image_annotator_point(x=890.3571428571429, y=354.6428571428571),
                ui.image_annotator_point(x=950.3571428571429, y=247.5)
            ])),
        ],
    ),
    ui.button(name='submit', label='Submit', primary=True)
])

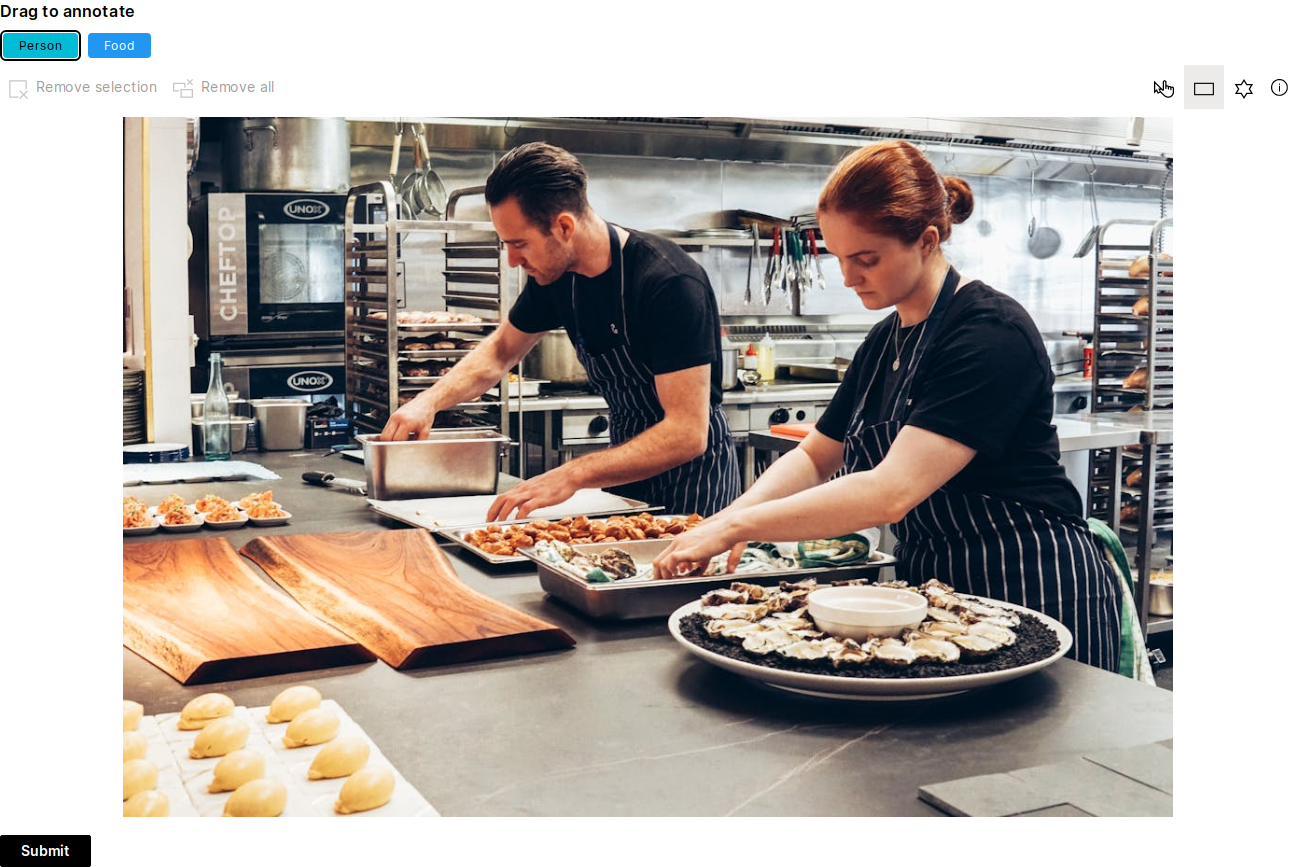

Allow only certain drawing shapes

Use the allowed_shapes attribute to limit the available shapes your users might use. The attribute takes a list of strings (either 'rect' or 'polygon'). If not specified, the annotator allows every supported shape.

image = 'https://images.pexels.com/photos/2696064/pexels-photo-2696064.jpeg?auto=compress&cs=tinysrgb&w=1260&h=750&dpr=1'
q.page['example'] = ui.form_card(box='1 1 9 10', items=[
    ui.image_annotator(
        name='annotator',
        title='Drag to annotate',
        image=image,
        image_height='700px',
        allowed_shapes=['rect'],
        tags=[
            ui.image_annotator_tag(name='p', label='Person', color='$cyan'),
            ui.image_annotator_tag(name='f', label='Food', color='$blue'),
        ],
        items=[
            ui.image_annotator_item(shape=ui.image_annotator_rect(x1=649, y1=393, x2=383, y2=25), tag='p'),
            ui.image_annotator_item(tag='p', shape=ui.image_annotator_polygon([
                ui.image_annotator_point(x=828.2142857142857, y=135),
                ui.image_annotator_point(x=731.7857142857142, y=212.14285714285714),
                ui.image_annotator_point(x=890.3571428571429, y=354.6428571428571),
                ui.image_annotator_point(x=950.3571428571429, y=247.5)
            ])),
        ],
    ),
    ui.button(name='submit', label='Submit', primary=True)
])

Keyboard shortcuts

The keyboard shortcut legend can be brought up by clicking the Info icon in the top right toolbar.

Key	Description
a	Select all shapes
c	Copy selected shapes
v	Paste selected shapes
d	Delete selected shapes
Shift + Click	Select multiple shapes when in the selection mode
Arrow keys (↑ ↓ → ←)	Move selected shapes by 1px (or 10px while holding Shift key)
Ctrl + Mouse wheel	Zoom in/out
Enter	Finish drawing polyshape
Backspace	Delete last polyshape vertex
Esc	Cancel ongoing task
l	Toggle label
b	Toggle drawing function
r	Select rectangle tool
p	Select polygon tool
s	Activate selection tool

Events

Register click and tool_change events to get more insights on what the user is doing. Useful for providing labeling auto-suggestions. See this example to learn more.

image = 'https://images.pexels.com/photos/2696064/pexels-photo-2696064.jpeg?auto=compress&cs=tinysrgb&w=1260&h=750&dpr=1'
q.page['example'] = ui.form_card(box='1 1 9 10', items=[
    ui.image_annotator(
        name='annotator',
        title='Drag to annotate',
        image=image,
        image_height='700px',
        tags=[
            ui.image_annotator_tag(name='p', label='Person', color='$cyan'),
            ui.image_annotator_tag(name='f', label='Food', color='$blue'),
        ],
        items=[],
        events=['click', 'tool_change']
    ),
    ui.button(name='submit', label='Submit', primary=True)
])
